Micro Vickers Hardness Tester

model: MMT-X

Brand: Matsuzawa

Origin: Japan

Views : 6

release time : 2020-05-28 14:57:58

The Matsuzawa Micro Vickers Hardness Tester MMT-X has a 6-station turret, double indenters, and 4 objectives. The turret can be loaded with two indenters. The design of four objective double indenters and four objective lenses greatly improves the applicability of the instrument. The resolution in the 200X-1000X magnification range is accurate to 0.01um. PMT system: automatic reading, data processing, hardness tester control.


·New function configuration, color LCD touch screen

·6-station turret, double heads, 4 objectives

·Large tolerance, deep tolerance in the industry

·Wide load range

·LCD Queue Mode

·Magnification 200X-1000X, resolution 0.01um

·LED efficient energy-saving light source


Operation: color LCD touch screen

The color LCD touch screen greatly improves operability and visibility, and the assistant function allows the operator to set appropriate test conditions.



       HK measurement mode               HK measurement mode


       Small load Brinell measurement mode   Mean and difference modes

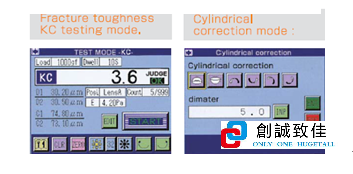

Fracture toughness measurement mode     Surface correction mode

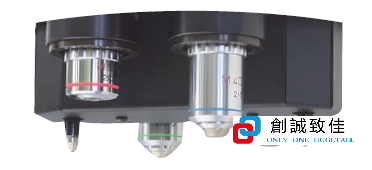

Functionality: The turret can be loaded with two indenters and four objectives

The design of double indenter and four objective lenses greatly improves the applicability of the instrument. The resolution in the magnification range of 200X-1000X can be accurate to 0.01um




Integrated large LCD model

Clear indentation is displayed on the large TFT LCD display, without human eye focusing and measurement, greatly reducing the operator's fatigue of long-term measurement




Assistant function: the three parameters of workpiece hardness, thickness and test load, just input two of them, the system will automatically calculate the third one, completely avoid misuse of load and wrong reading




Equipment parameters:

Project/model

Mmt-x7, mmt-x series

load

standard

Type A

5,10,25,50,100,200,300,500,1000 gf


Type B

1,3,5,10,25,50,100,200,300,500,1000,2000 gf

Load the way

Automatic loading and unloading

Load faster

50 um/SEC

Warranty time is adjustable

5-99 seconds

Number of turret loading head

One standard (vickers);Optional 2 (one vickers, one   knoop)

objective

2 standards (10X,50X);Optional 4 (2.5x-100x)

The eyepiece

The standard 10 x;Optional 15 x

Total magnification

Standard (100X,500X);Optional 25-1500 - x x

Measuring microscope

(400 x)

Measure the length of the

250 um

Ruler gauge

0.01 um (200 x - 1000 - x)

Unit of measure

0.01 um (200 x - 1000 - x)

species

electrical

The light source

The LED

turret

automatic

LCD touch screen

color

Measurement model

6 kinds of HV,HK,HBS,Kc,Xbar, surface correction

storage

999

Hardness conversion

According to the SAE (J - 417 (b), ASTM (E - 140)

Qualified to judge

The results are automatically judged by the size of the   input

Statistical calculations

Max value, min value, average value, discreteness,   conversion value

Artifacts are highly

120 mm

The depth of the workpiece

160 mm

Data output

Parallel port (for printers)

RS232C(for PC, also for printer

The accuracy of

Conform to JIS B7725 and ASTM e-384

The camera interface

There are

Size and weight

Host size W250XD520XH530mm,35kg

The power supply

50/60 hz single-phase AC100-240






Standard configuration:

CODE NO

describe

MMT - X7

M031

Manual XY base, resolution 0.01mm, moving distance 25mm

1

M011

Precision caliper with large opening of 50mm

1

M061

Standard hardness block 700 hmv0.2

1

M001

Diamond head

1

M041

Measuring microscope: electronic type

1

M042

Measuring microscope: mechanical


M072

Objective 50 x

1

M074

Objective 10 x

1

M111

Level of support

4

M112

level

1

M094

insurance

2

C031

Power cord (3P,2.5m)

1

M161

Dust cover

1


Operating instruction

1


Auxiliary installation tool

1


Check the table

1


Vickers hardness table


設備參數:

Optional data transmission software HARDCOM


Information can be directly uploaded to excel sheet

Can upload test data, test parameters, statistics, histogram

The position of the measuring point corresponding to each hardness value (need to configure a digital micrometer ruler)
